WideLink CS110
Compact Serial Communication Server
Overview
The CS110 provides an efficient solution to local network users communication tasks. Its IPX protocol offers the benefits of convenient modem sharing and also, PPP remote access function allows remote nodes to access home-based file server or UNIX host easily.Features
- Provide PPP protocol to allow remote user dial-into a TCP/IP or a IPX/SPX network
- Supports transparent modem sharing. Network users can login to the Internet, on-line services or BBS.
- Supports 10Base-2 (BNC) and 10Base-T (UTP) auto-sensing for network connections.
- Supports Dial-back / Password security for remote access.
- The redirect COM driver work with all windows 3.1 communication programs including a Telix, Netscape, Terminal, Trumpet, WinFax, Procomm, Xtalk Mk4, Spry, Smartcom, Qmodem pro, SuperFax, WinFax Lite, WinComm Lite, Quick Link II, WinSpan Lite etc.

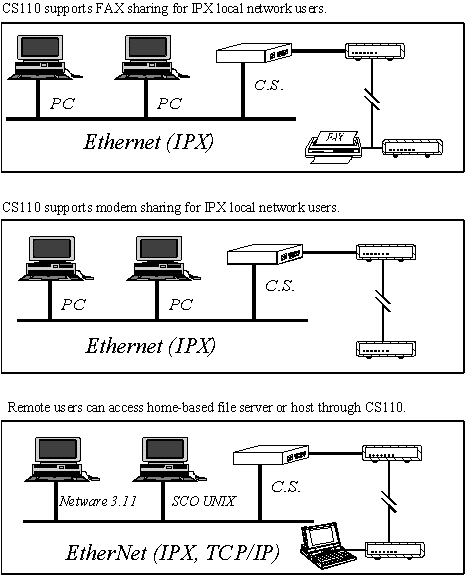

Modem Sharing - With CS110 modem sharing, users can share modem for more economical data transmission under DOS and Windows, also you can have the convenience of modem capabilities, for example, login BBS , Internet or CompuServe and etc. without having to keep a modem on your desk.
Remote Access - Through PPP, The CS110 allows remote qualified users to access home-based file server or UNIX host.
Remote Control - With CO-session (remote control software) CS110 supports remote control function. Remote site users can control workstation which on home-base network
Technical Specification
| Model No. | CS110 |
| Protocol | IPX |
| Frame Type | IEEE 802.2/802.3 Ethernet II, SNAP |
| Network Interface | Ethernet 10Base-2 (BNC), 10Base-T (UTP) |
| UART | 16550 |
| Serial Port | 1 Port |
| Max. Asyn. Speed | 230.4Kbs |
| Transmission Environment | Windows or DOS |
| Dimensions | 120mm (L) x 86mm (W) x 30mm (H) |
